Autorotation

Autorotation is a theory that applies to the operation of fixed-wing aircrafts and rotary-wing aircrafts.

during an engine failure, a helicopter may be able to slow its descent before landing and lan in a controlled manner, using the characteristic autorotation.




Fixed-wing aircrafts

When an aircraft is in stall, or approaching the stall, it displays a tendency to roll spontaneously to the right or to the left. A fixed-wing aircraft in a spin, rolls continuously to the right or to the left, which displays the characteristic autorotation.

When the angle of attack is less than the stalling angle, any increase in angle of attack causes an increase in lift coefficient that causes the wing to rise. As the wing rises the angle of attack decreases, and that tends to restore the wing to its original angle of attack.

Conversely, any decrease in angle of attack causes a decrease in lift coefficient that causes the wing to descend. As the wing descends the angle of attack increases, and that tends to restore the wing to its original angle of attack.

For this reason, when the angle of attack is less than the stalling angle, the angle of attack is stable. The aircraft displays damping in roll.

When the wing is stalled and the angle of attack is greater than the stalling angle, any increase in angle of attack causes a decrease in lift coefficient that causes the wing to descend. As the wing descends the angle of attack increases, and that causes the lift coefficient to decrease further and the angle of attack to increase even further. Conversely, any decrease in angle of attack causes an increase in lift coefficient that causes the wing to rise. As the wing rises the angle of attack decreases, and that causes the lift coefficient to increase further towards the maximum lift coefficient. For this reason, when the angle of attack is greater than the stalling angle, the angle of attack is unstable. Any disturbance of the angle of attack on one wing will cause the whole wing to roll spontaneously and continuously.

When the angle of attack on the wing of an aircraft, or on one wing, reaches the stalling angle, the aircraft is at risk of autorotation that will eventually develop into a spin if the pilot does not take corrective action.



Rotor-wing aircrafts

in operation of rotor-wing aircrafts, such as helicopters and autogyros, the generation lift by the main rotor, even though no power is being provided to the rotor by an engine is known as autorotation.

Autogyros main rotor is un-powered, which results the autogyro to completely rely on continuous autorotation to generate the lift.

Stirling Engine


A Stirling engine is a type of engine that converts heat energy into mechanical power by alternately compressing and expanding a fixed quantity of air or other gas (the working fluid) at different temperatures.

The engine is designed so that the working gas is generally compressed in the colder portion of the engine and expanded in the hotter portion resulting in a net conversion of heat into work. An internal Regenerative heat exchanger increases the Stirling engine's thermal efficiency compared to simpler hot air engines lacking this feature.

Stirling engine was invented by Reverend Dr. Robert Stirling in 1816, who was the father of famous locomotive engineers Patrick Stirling and James Stirling. The first Stirling engine put in to practical use was in 1818, which was used to pump water in a quarry



The below pictures display the #2 engine which i constructed using the drawings appeared in the Popular Science magazine in 1965.








Video of the Stirling Engine








The Electric Garden Railway

This is a short video of the new electric powered loco, running on my Garden Railway in negombo, Sri Lanka.


Steam Powered Garden Railway


A model railway system set up outdoors in a garden is known as a Garden railroad or a Garden railway. hile G is the most popular scale for garden railroads, 16 mm scale has a dedicated and growing following especially in the UK. Model locomotives in this scale are often live steam scale models of British narrow gauge prototypes. 16 mm scale (which runs on 32 mm track, the same gauge as O gauge is probably now more popular in the UK than G scale.

A garden railway's scale can be anywhere from 1/32 (Gauge 1) to 1/20.3. 1/32 scale is also called "three-eighths scale" meaning 3/8 of an inch on the model represents one foot on the real thing. For similar reasons, 1/24 scale is also called "half inch scale".

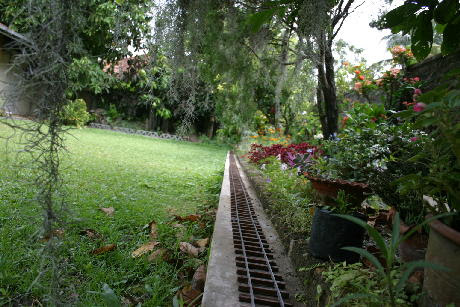

The following pictures illustrate my garden railway built around the garden, with a bridge across the pond. "BRAZIL" the 16 mm Live steam loco is the only train operating at present.

A train station, along with structures, buildings, lamp and signal posts will be added in the near future.








Video of the Garden Railway






Wilma - The Twin Hull Steam Boat

This is a twin hull steam boat powered by the previously built Hasbrouck #10 Steam Engine

Me and My Wife going on a ride


The Boat


The Boat was constructed using two 16ft canoes.






The Hasbrouck #10 Engine mounted on the Boat.






Video of the Twin Hull Steam Boat




Steam Engine




Steam Power

In physical chemistry, and engineering, steam refers to vaporized water. A steam engine is a heat engine that performs mechanical work using steam as its working fluid.

For details of the Previously built Steam Powered RC Aircraft
Click Here.



The Hasbrouck #10 - 2HP Column Marine Steam Engine

The plans for the engine were presented to me by Mr. Ray F. Hasbrouck of No. 20, Brouck-Ferris Blvd., New Platz, NY 12561, in May 2005. The plans were drawn very carfully and the building instructions were fully descriptive.


Construction

The Steam Chest, D Valve, and the Steam Chest Cover were made as first step.


The above photo shows the two eccentrics and the outer covers.


The Trunk Guide, the Piston and parts for the foward / reverse control machanism are shown in this photo.




This photo illustrates the Cylinder Block showing the Port arrangement, Trunk precisely alligned with lower face of the Block.


Copper Tubes for the Mono Tube Boiler.


The floating Lazy Bee


The Lazy Bee is one of the most popular, easy to fly RC airplane designed by Andy Clancy of Clancy Aviations. Lazy Bee is an airplane with exceptional low speed performance with a typical wingload of 6oz/sq ft. The stall speed is very low and control surfaces are over sized. The Lazy bee loops and rolls easily at speeds where most planes tend to fall out of the sky.




Model Specifications for the original Lazy Bee

Wingspan40"
Wing Chord14"
Wing Area15 - 30 oz
Length26"
Wing Chord14"
Wing Load4 - 8 oz/sq ft
Motor.049 - .15 2-stroke/ Diesel

.20 - .26 4-stroke

.035 - .075 Electric




The Lazy Bee on a Puddle

The following video shows off my Lazy Bee fitted with floats, flying on a puddle of Rain water.


Electric Autogyro



RotorCrafts

Before discussing the Autogyro, it is important to know what is meant by a rotocraft. A rotorcraft is a heavier-than-air flying machine that uses life generated by wings, which are called rotor blades that revolve around a mast. Rotor is refereed to several rotor blades mounted to a single mast. Rotorcraft may also include the use of static lifting surfaces, but the primary distinguishing feature being the lift provided by one or more rotors.

Types of Rotorcrafts

  • Helicopter
  • Autogyro
  • Gyrodyne
  • Tiltrotor


Autogyro

Autogyro is a type of a rotorcraft, which was invented by a spanish aeronautical enthusiast and engineer Juan de la Cierva in 1919. He made his first successful flight on 9th January 1923, at Cuatro Vientos Arfield in Madrid. Autogyro uses a rotor to develop lift in a similar way as helicopters. But the difference is that, though the helicopters rotor is rotated by an engine during normal flight, The rotor of an autogyro is driven by aerodynamic forces in autorotation. An engine-powered propeller, similar to that of a fixed-wing aircraft, provides thrust for the autogyro.

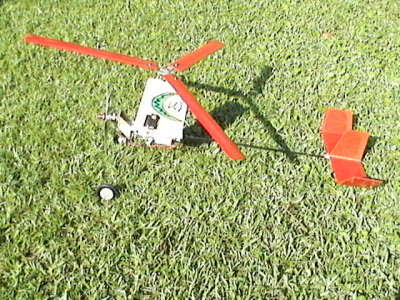

Construction of the Model Autogyro


This is a direct control Electric Gyro Plane, Powered by an AXI motor. A 12.6v 1500 mAh battery supplied the power to the engine. The Tail boom is made out from a carbon fiber tube.


The rotor pylon is costructed with balsa and cardboard.


The three blades were constructed from balsa wood. Though disorientation is a slight problem, it was quite easy to fly this model. The flight duration was approximately 12 minutes.


Video of the Flight



Catalina - Electric



The Catalina was constructed from RCM Plans. It is powered with two AXI Motors. Two Pararally connected Lipo batteries (12.6v 1500 mAh) were used to power the motors.

The Engine cowlings were casted from Glass Fibre Fabric



The Spinners were turned out in my CNC Lathe Machine.





Though the Catalina was stable in calm air, It was slightly underpowered. At a later stage I will be try this with more powerfull motors.


Model Specifications

Wing Span : 84" with the floats up
Wing Area : 876 sq. inches
Wing Loading : 29 oz. / sq. ft.
Weight : 10.5 lbs. with a monokoted wing
Takeoff run : 100-200 feet
Fuselage length : 51 inches
Constructions : Fiberglass fuselage, foam core balsa sheeted wings
Engines : .40 - .46 cu.in. using 8 oz tanks in each nacelle


Video of the Flight

Comet - The Steam powered RC Aircraft



Steam Power

In physical chemistry, and engineering, steam refers to vaporized water. A steam engine is a heat engine that performs mechanical work using steam as its working fluid.



Construction of the Steam Powered Aircraft

I was lucky to come accross a set of copies of the drawings of the Comet , published by Mr. David Parker in the Model Engineer Magazine. The work started in 2000. I had prior experience on steam engines when I started this project. As a school boy in 1965, I had constructed an oscillating cylinder Steam Engine for a science exhibition. After leaving school, I joined an Engineering Firm where I worked in the tool room learning to operate lathe machines, milling machines, grinders etc.

My experience in flying RC Fixed Wing Models, Helicopters and Gyro copters was an added advantage to successfully complete the mission.



The Engine Construction

The engine construction started with the Base Plate and moved on to other items


Cylinder and Port Block


Completed Port Block Soldered to Cylinder


Piston, Cross Head and the O Ring


Throttle Valve Lubricator Assembly


Boiler Casing and the Fire Box


The Engine Fitted to the Boiler casing.



The Aircraft



Technical Specifications

Working Pressure (Steam)80 psi
Propellar13"x 8" Wooden (Electric)
RPM3350 (max 3600)
Static Thrust500g
Wingspan75"
Wing Area5.09 sq. ft.
Weight of Power Plant (Dry735g
Water150g (Hot Water)
Methanol75ml
Weight Ready to Fly1469g (52oz)
Wing Loading11.51oz per sq. ft.
Engine Run Duration1.5 minutes @ 3500 RPM



The Flight

The maiden flight was made on a calm day, with a steady breeze of 8 mph. The take off run was around 20 feet, and the flight duration was 4 minutes.









The Wright Flyer





The Wright Flyer was the first powered aircraft designed and built by the Wright brothers, Orville and Wilbur Wright. The Wright Flyer, also known as Flyer I was the first piloted, heavier than air, aircraft that could fly and take off under its own power. It was based on the Wrights experience in testing gliders at kitty Hawk in 1900 and 1902. The first flight was made on 17th December 1903 at Kitty Hawk, North Carolina in United States.

On December 2003, The world celebrated the 100th anniversary of the Wright Flight. To Mark the event, A model of the Wright Flyer was built and successfully flown by us on 17th December 2003, in Negombo, Sri Lanka.

The Tail (Rudder) section of the aircraft was slightly modified to obtain better control as it was almost impossible to fly with its original design as a model aircraft.


The frame was constructed from carbon fiber tubing and the wings were covered using Expanded Polystyrene.


Pictured above are my Sons Collin and Amith, Who built the aircraft, holding it, few moments before the flight.




Captured Moments of the Flight





It was a magnificent sight to see the model of the wright flyer airborne, though it was a tricky and a challenging task to maneuver it.

The Wright Flyer made us feel the joy and pride that Wright Brothers expirienced on 17th December 1903, which is considered as the hitorical turning point of airborne transportaion in the world.

After a successful flight of over a minute, the aircraft safely landed back on ground.







Video of the Wright Flyer


Kadet Senior on Floats

The Kadet Senior

Kadet Senior is a low flying, inherently stable model aircraft designed by Claude McCullough. It is considered as one of the easiest to control RC aircrafts, which is a perfect approach to RC flying for amateur Pilots.




Specifications of Kadet Senior

Wingspan78 in(1981 mm)
Wing Area1150 in²(74.2 dm²)
Weight6 lbs (2720 g)
Length62 in (1575 mm)
Radio Req.3 Channels, 3 Servos
Engine Req..29-.40 in³ (4.8 - 6.5 cm³) 2-Stroke Glow


.35-.45 in³ (5.7 - 7.4 cm³) 4-Stroke Glow




Video of Kadet Senior

This is my Kadet Senior model Aircraft fitted with locally fabricated foam floats. The flight was made above the Negombo lagoon in Sri Lanka.





Kadet Senior on Floats
